Smoke Alarm Red Light Meanings

Smoke Alarm Blinking Red Light: Meaning & Status Codes

Research and editorial review: Smoke Alarm Guide • Standards Context: Manufacturer Manuals & Fire Safety Guidelines • Updated: October 2026

Emergency Safety Notice

If the alarm is sounding a continuous emergency siren (repeated 3-pulse or 4-pulse pattern) or you observe smoke, fire, or odor, immediately evacuate all occupants and call emergency services. Never troubleshoot an alarm while in potential danger.

Direct Answer

A red LED blinking once every 40 to 60 seconds is normal standby operation on most smoke alarms, indicating the sensor is actively monitoring the room. A rapidly flashing red light (once per second) indicates an active alarm, an initiating unit, or Hush mode. Exact patterns vary by model.

LED Flash Rate & Power Status Triage

Red LED Flash Rate Decoder:
• 1 Flash Every 40-60 Seconds: Normal standby operation (everything is healthy).
• 1 Flash Every 10-15 Seconds: Low battery warning or temporary sensor desensitization.
• Rapid Flashing (1-2 times per second): Initiating alarm detecting smoke, or active Hush mode.
• Red Light with Periodic Chirp: Battery low or chamber trouble fault.

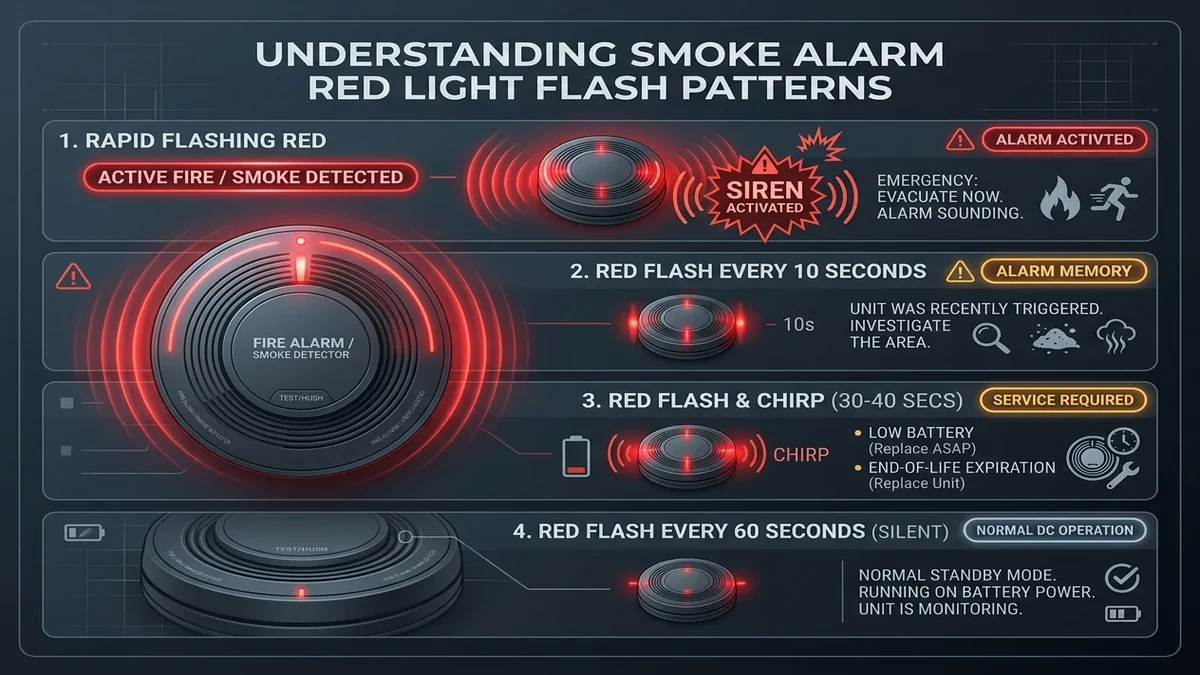

Red LED flashing on smoke alarm face indicating operational status

A slow red flash every 40-60s indicates normal standby operation; rapid flashes indicate an active or initiating alarm.

LED Status Verification Checklist

Check if the red flash is accompanied by audible sirens or maintenance chirps.
Measure the flash interval (slow pulse every 45s vs rapid strobe every second).
Check if the alarm was recently silenced using the Hush button.

The red LED indicates sensor activity, alarm memory, and fault conditions. Distinguishing a routine heartbeat pulse from a fault or emergency strobe ensures proper response.

Red LED Status Diagnostic Table

Red LED Flash Pattern	Accompanied Sound	Diagnostic Meaning	Required Action
1 flash every 40 to 60 seconds	Silent (no sound)	Normal standby heartbeat	No action required; sensor is actively monitoring
1 flash every second (rapid)	Loud 3-pulse siren	Active alarm / Initiating unit	Evacuate if fire exists; press Hush if verified false cooking alarm
1 flash every 8 to 10 seconds	Silent	Hush/Silence feature active	Wait 8-10 minutes for unit to reset automatically to normal mode
1 flash every 30 to 60 seconds	1 audible chirp	Low battery voltage warning	Replace backup battery with fresh unexpired cell
3 rapid flashes every 40 seconds	Silent	Alarm memory latch	Indicates unit detected smoke previously; press Test to reset memory

How Alarm Memory Latches Work

If a smoke alarm triggered while you were away, modern units retain an "alarm memory latch." The red LED will flash in a distinct multi-pulse cadence for 24 to 48 hours to inform you which specific room experienced the smoke event. Pressing the Test button clears the stored memory.

LED Indicator Diagnostic Cautions

Do not panic if you see a red flash once every minute; this is normal heartbeat operation on most residential models.
Do not dismantle an alarm while the red LED is actively flashing.

Important Safety Guideline

If the red LED is flashing rapidly and sounding a horn, immediately check your home for smoke or fire before attempting to silence the unit.

Chamber Trouble Indications

If a red or amber LED flashes in an unrecognized erratic pattern and chirps persist after a battery swap, consult the manufacturer manual for internal trouble codes.
